Encounter Jesus Ministries · Arena, Abuja · September 2026
Seven LED surfaces mapped as one
A four-day convocation on seven LED surfaces: a centre wall, top and bottom bands, and four delay screens down the room. We mapped every surface into a single 4992 by 2304 Resolume canvas, drew the level line the whole rig hangs off, and ran the content and the lighting as one look through to the finale.
- Room
- Indoor arena, stage deck 1.2 m
- Surfaces
- Centre wall, two bands, four delays
- Canvas
- 4992 × 2304, 256 px per metre
- Playback
- Resolume Arena, three processor outputs
- Content
- 172 clips, DXV3 HQ, 7 PNG masks, timed run order
- Days
- 24 to 27 September 2026
- Deliverable
- 3D screen map, slice map, render spec, run sheet
Map

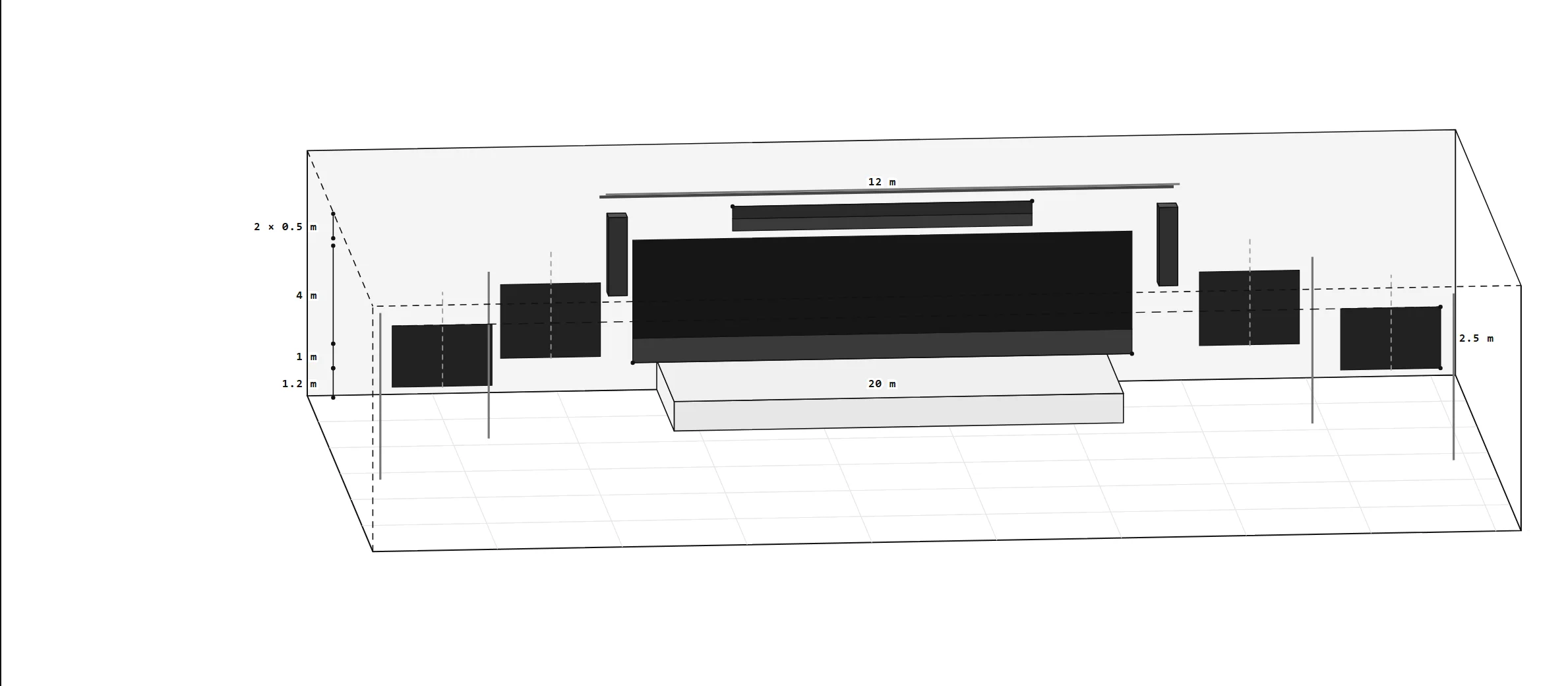

Draw the room before the vendor hands over a pixel map.

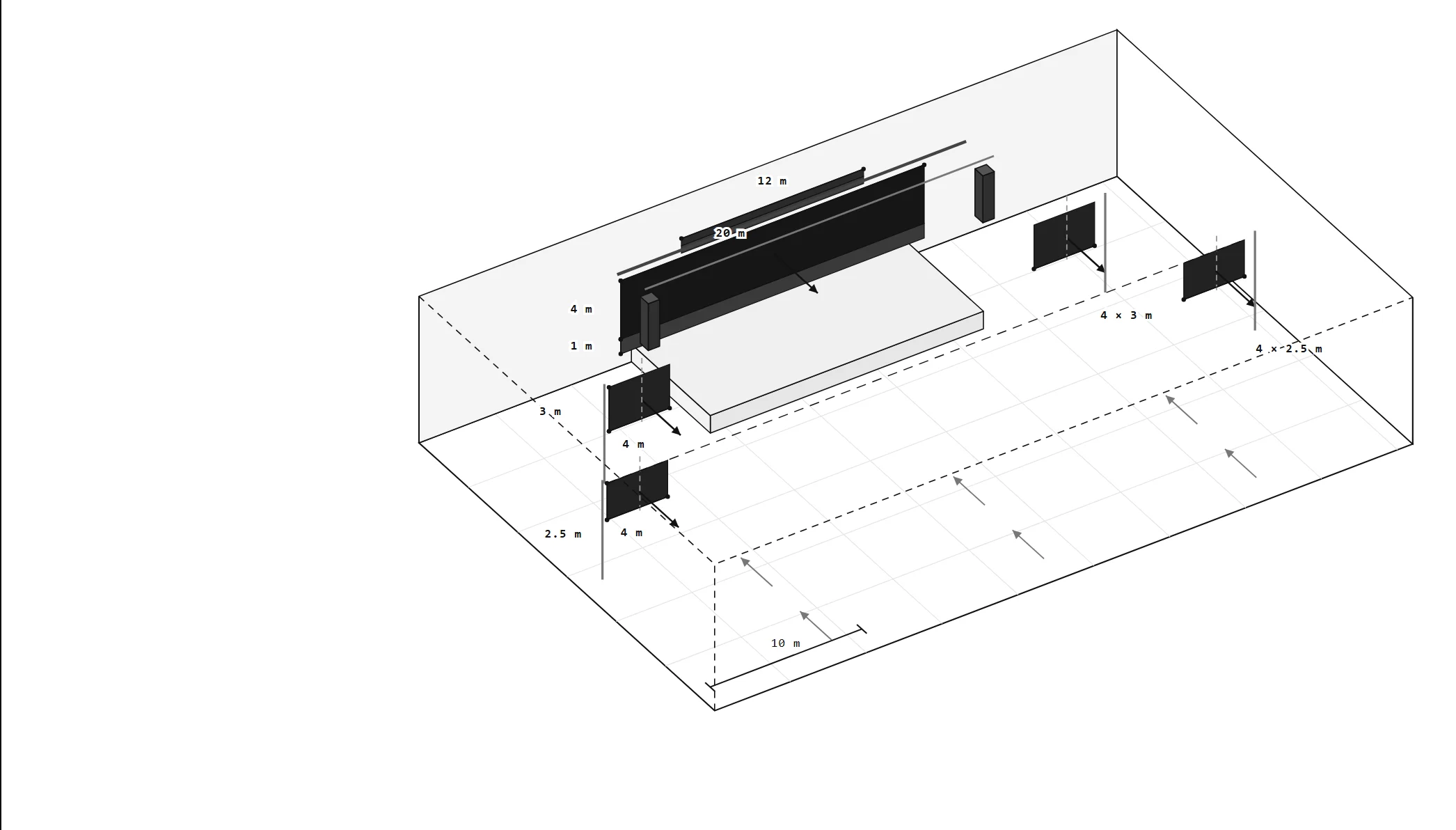

It started as a sketch on a phone six days out: centre wall, bands, four delays, with the sizes we had been given. The vendor had the panels but not the numbers, so we drew the seven surfaces from the sketch and the first build photos, then routed the content as three outputs: the upstage stack as one picture, the inner delays mirrored for camera, the outer delays mirrored for theme artwork, with masks cutting the physical gaps out of the picture.
Build

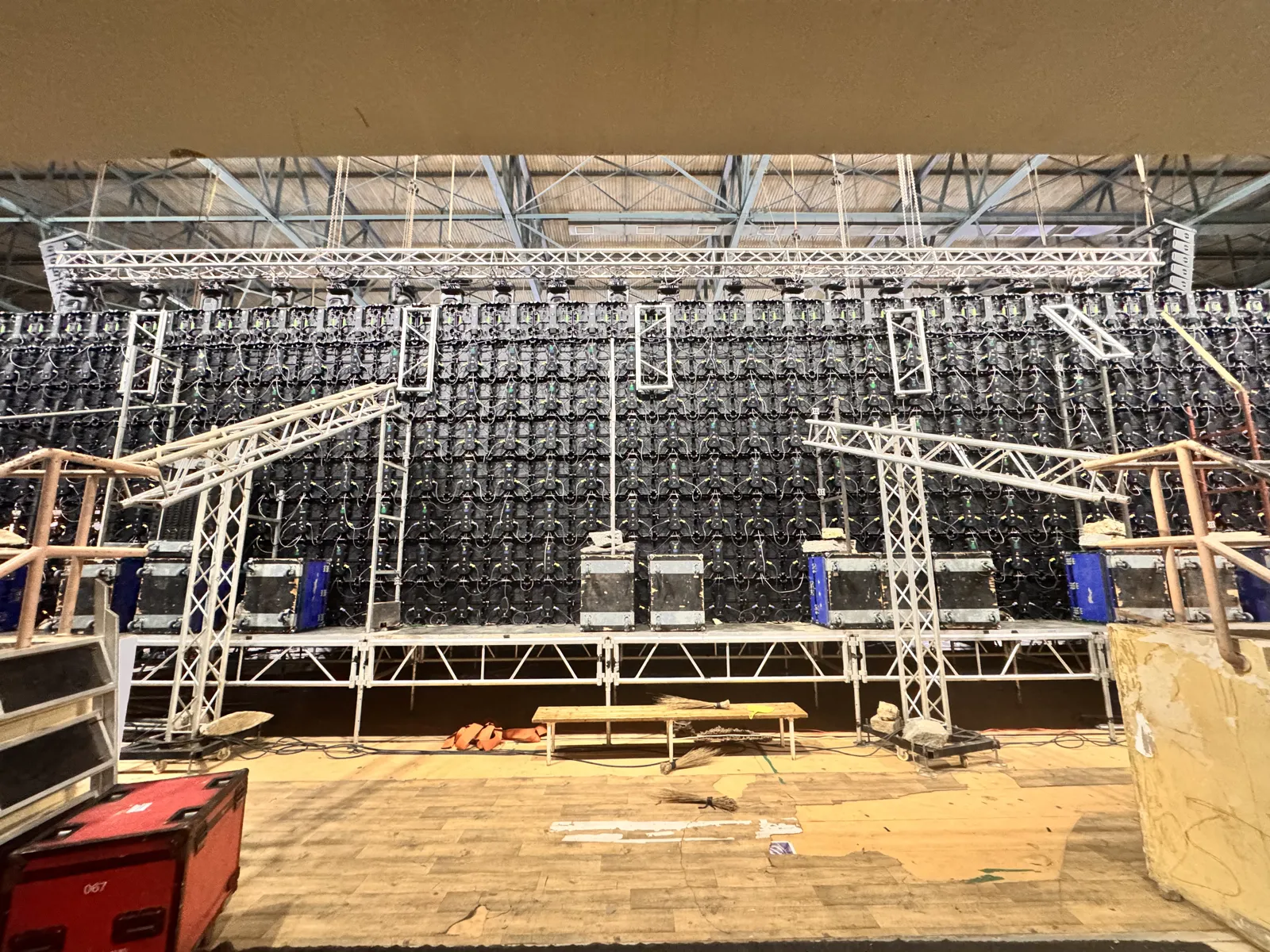

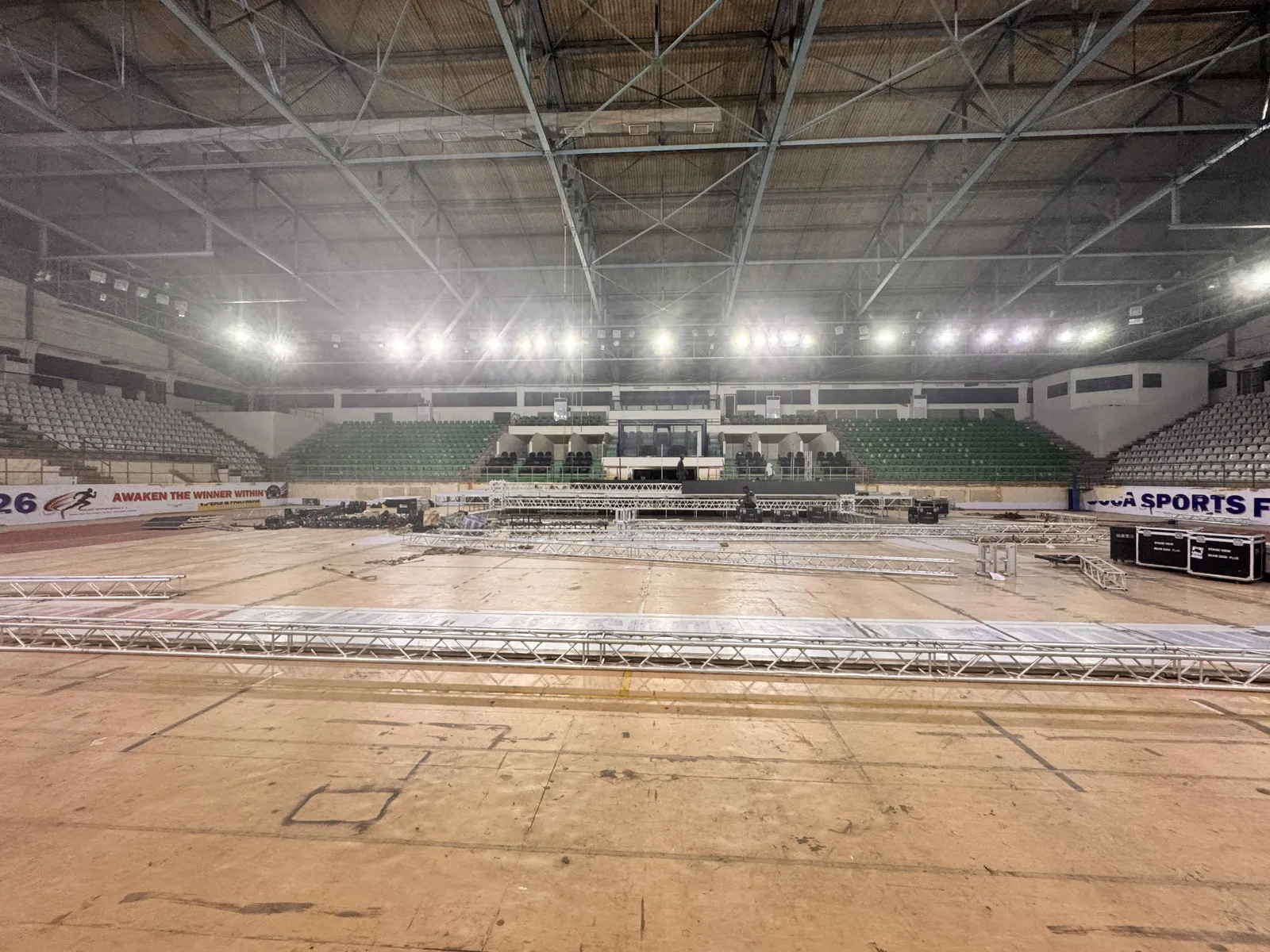

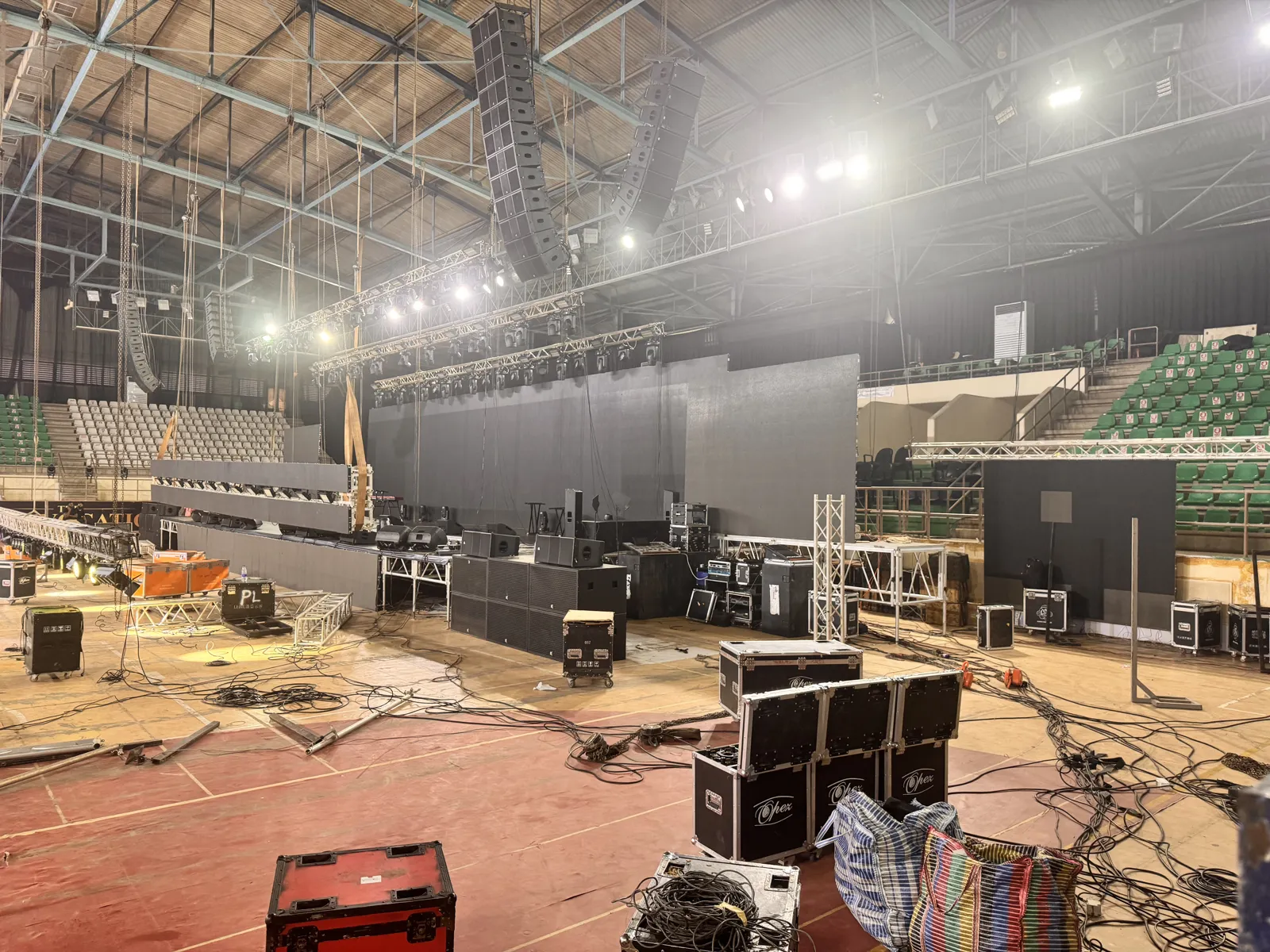

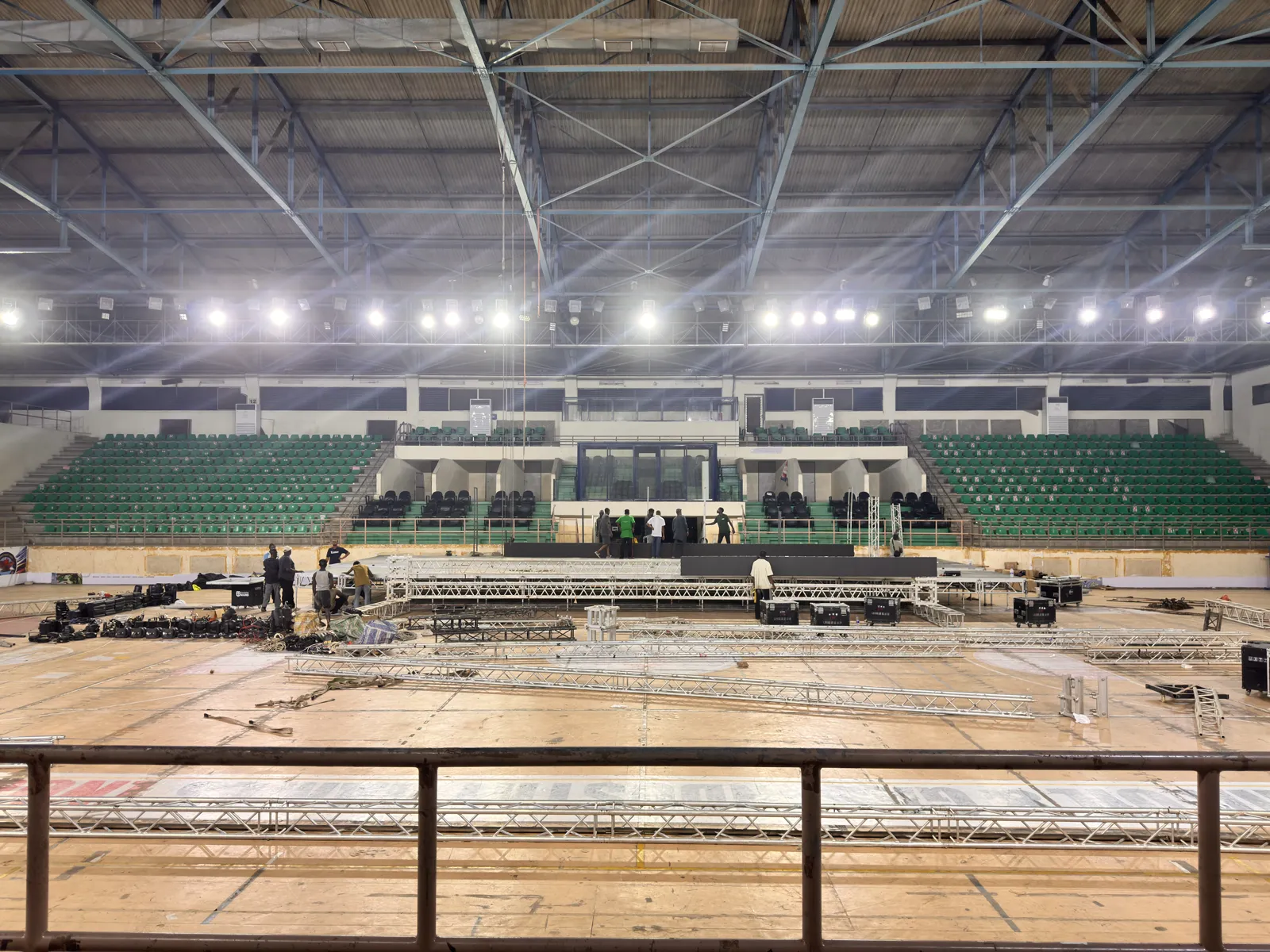

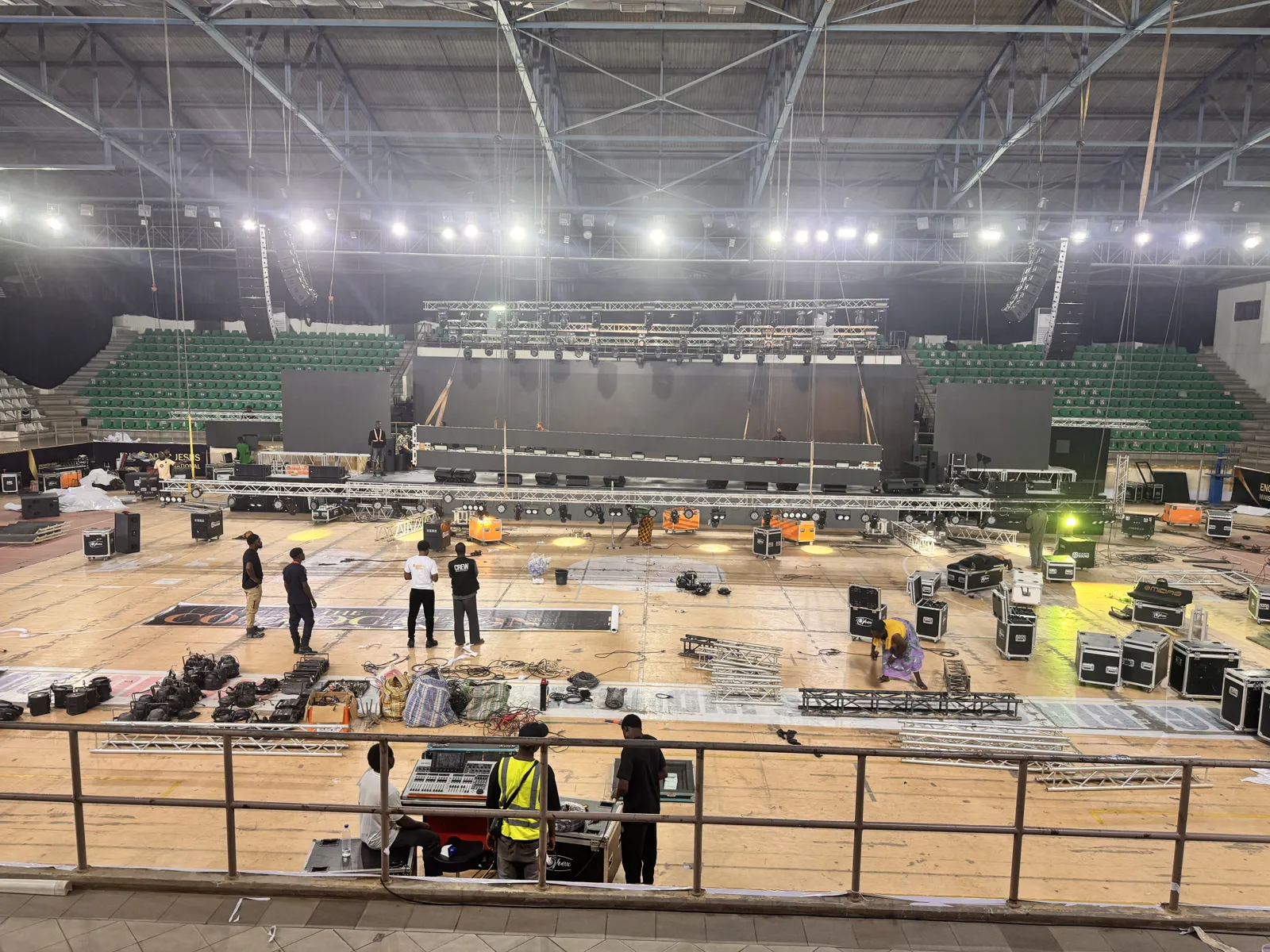

Empty arena on the Tuesday night. Wall standing by Thursday morning.
In the room

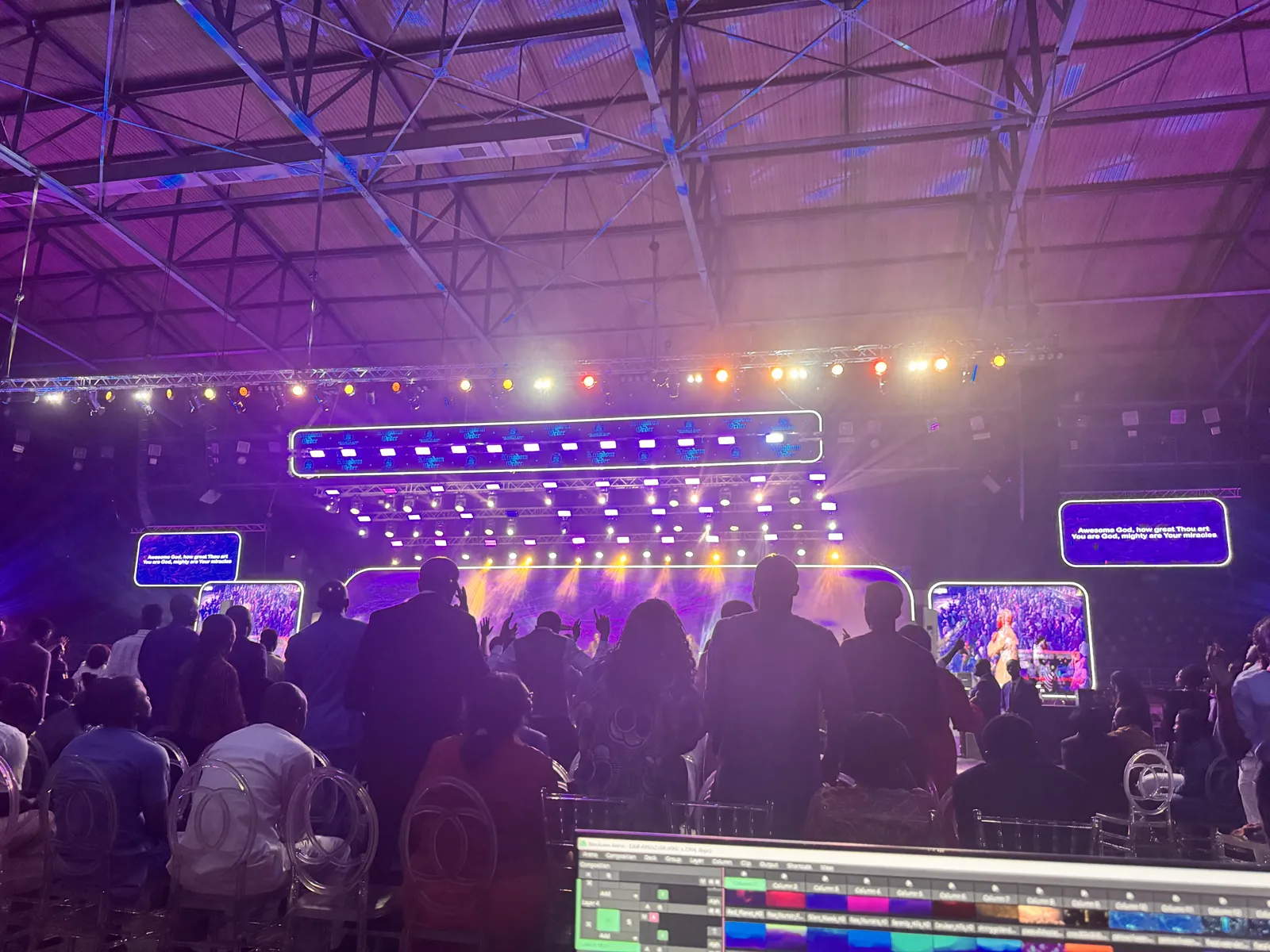

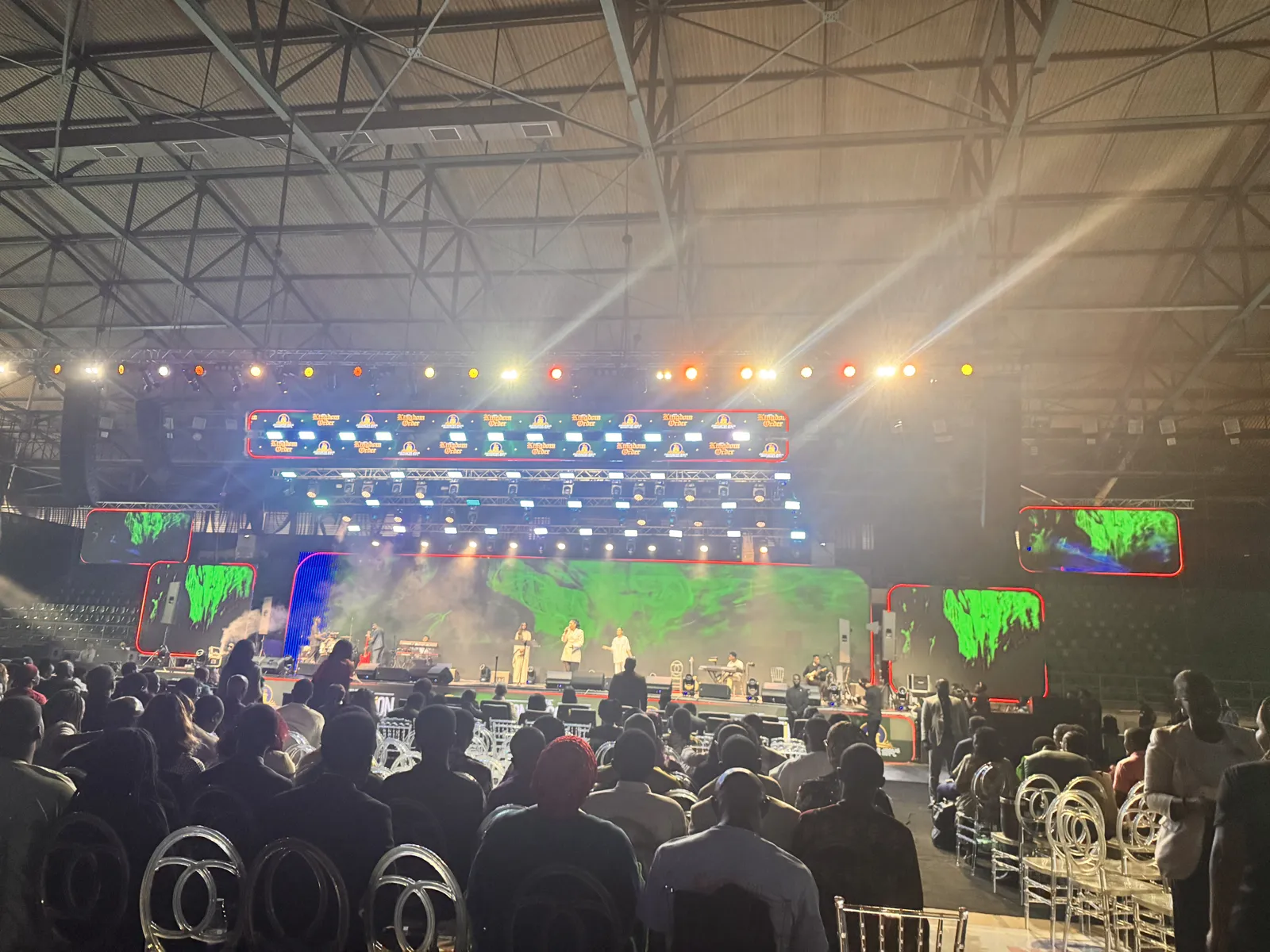

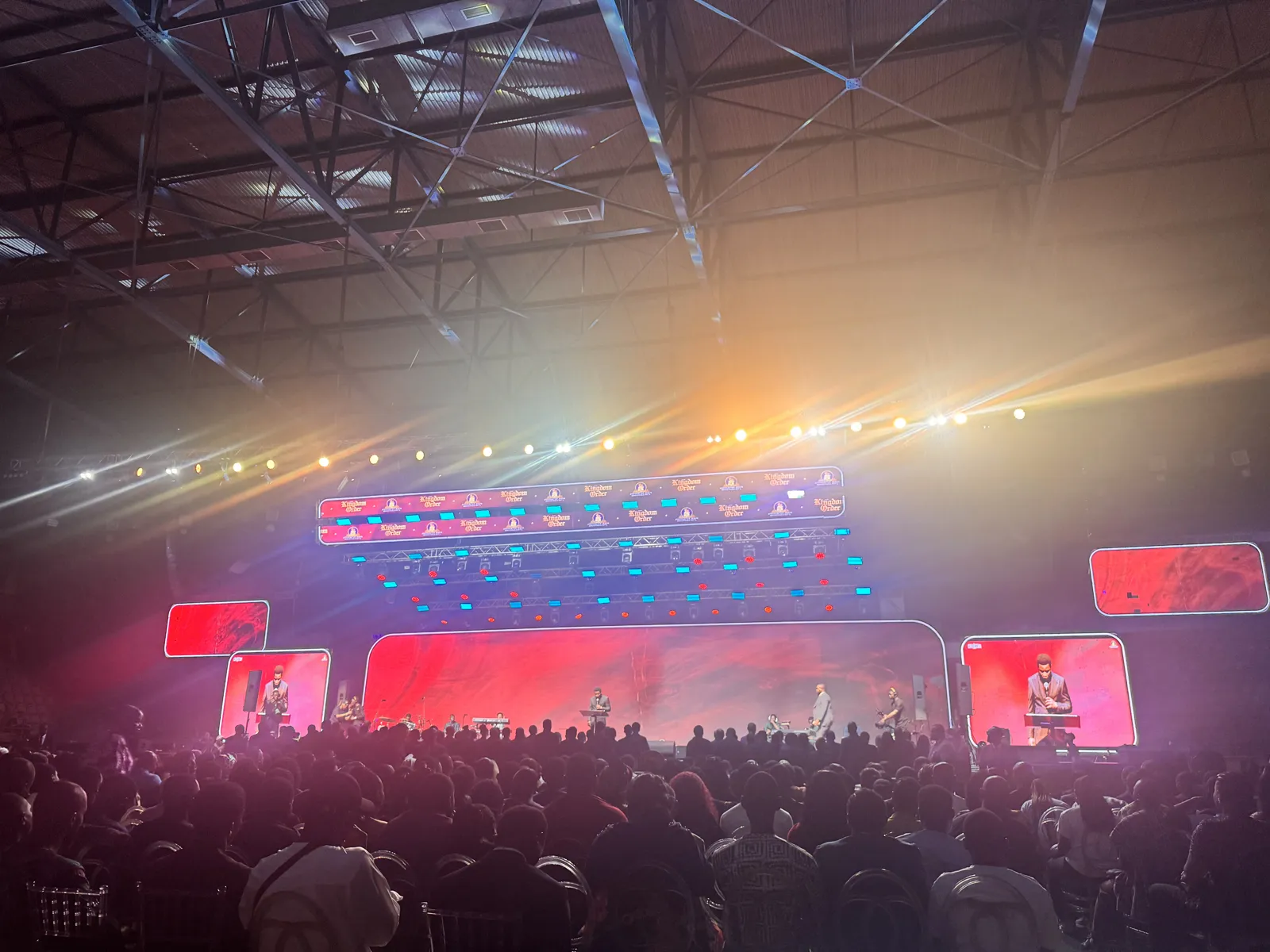

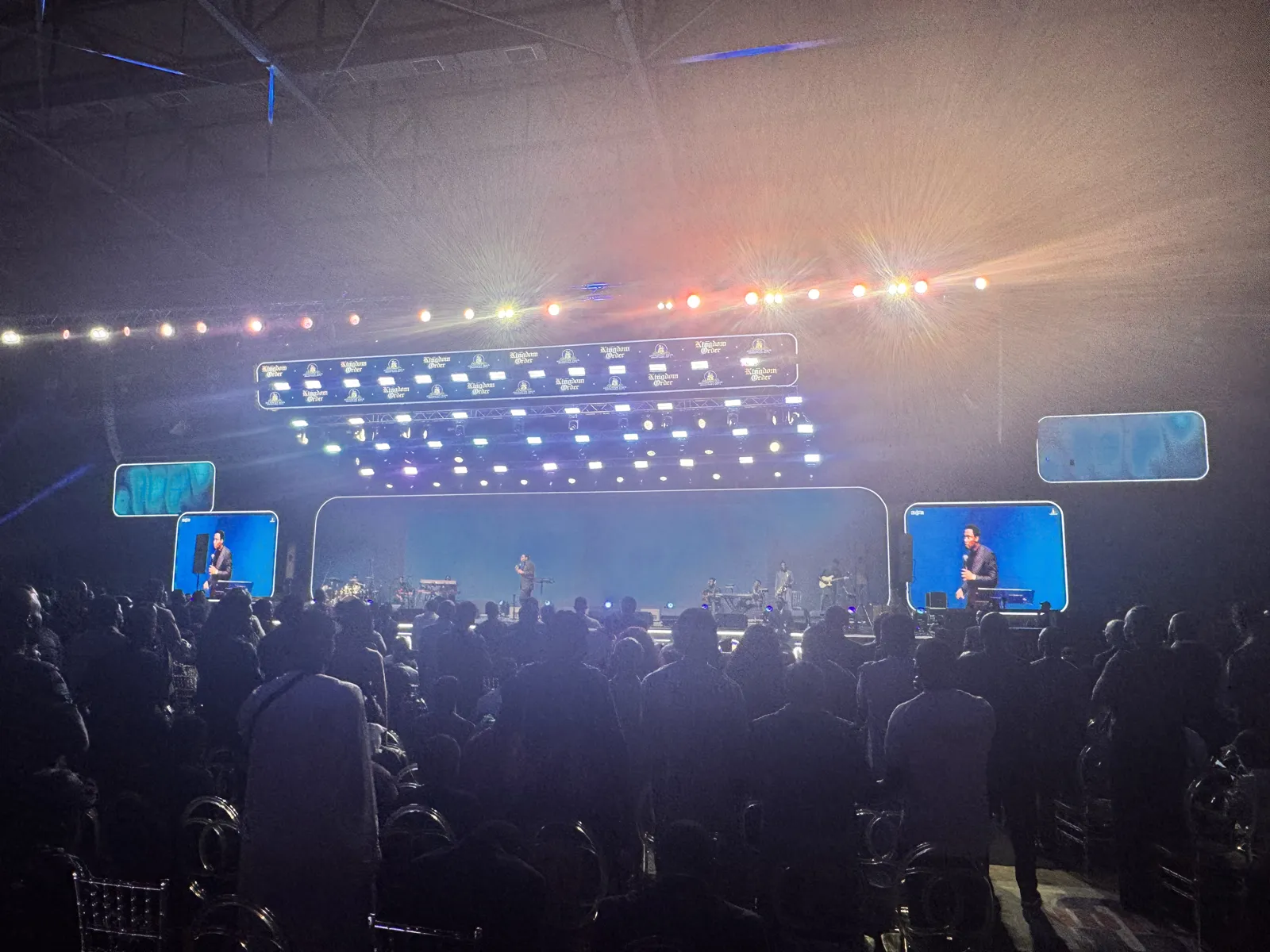

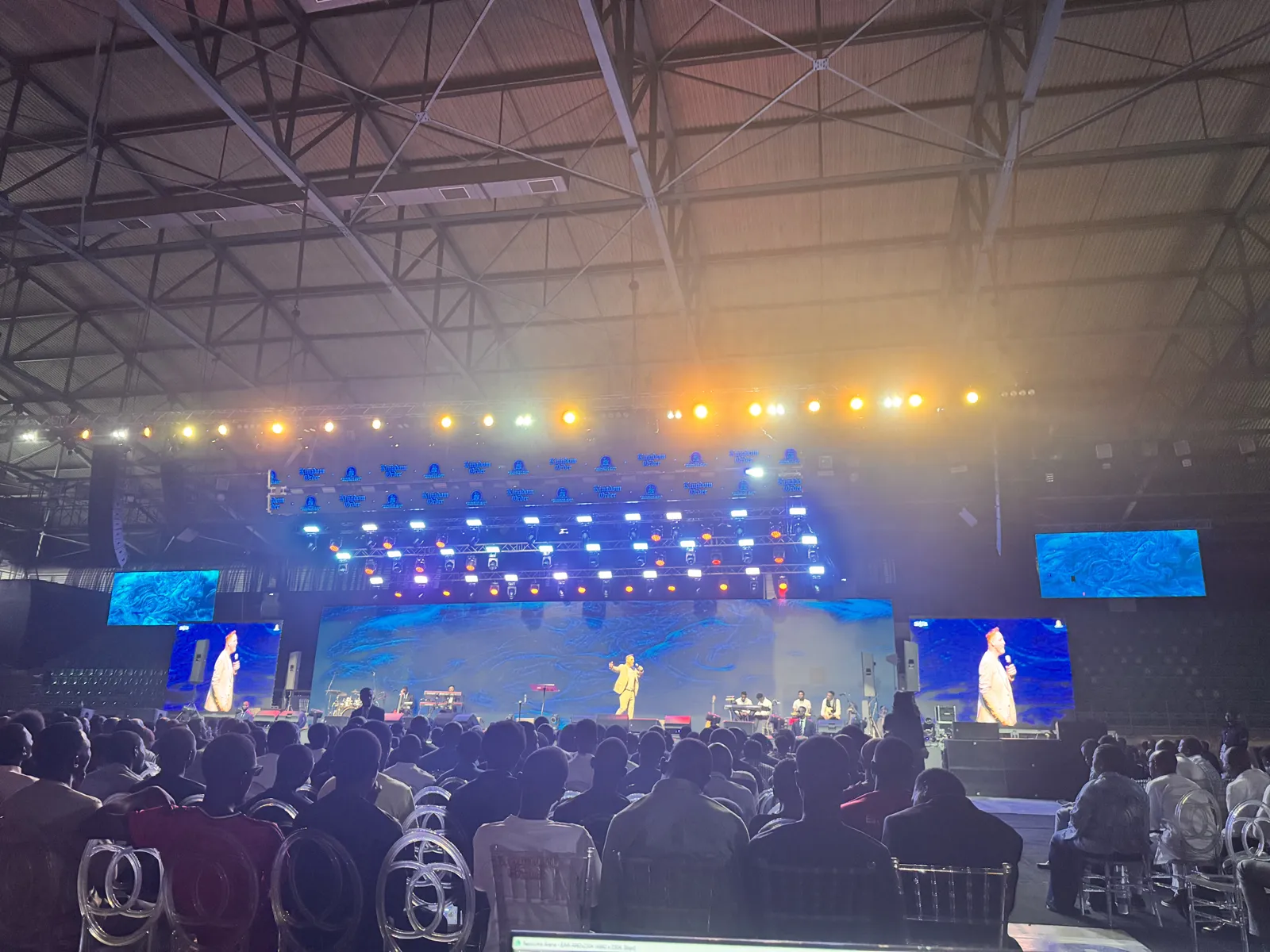

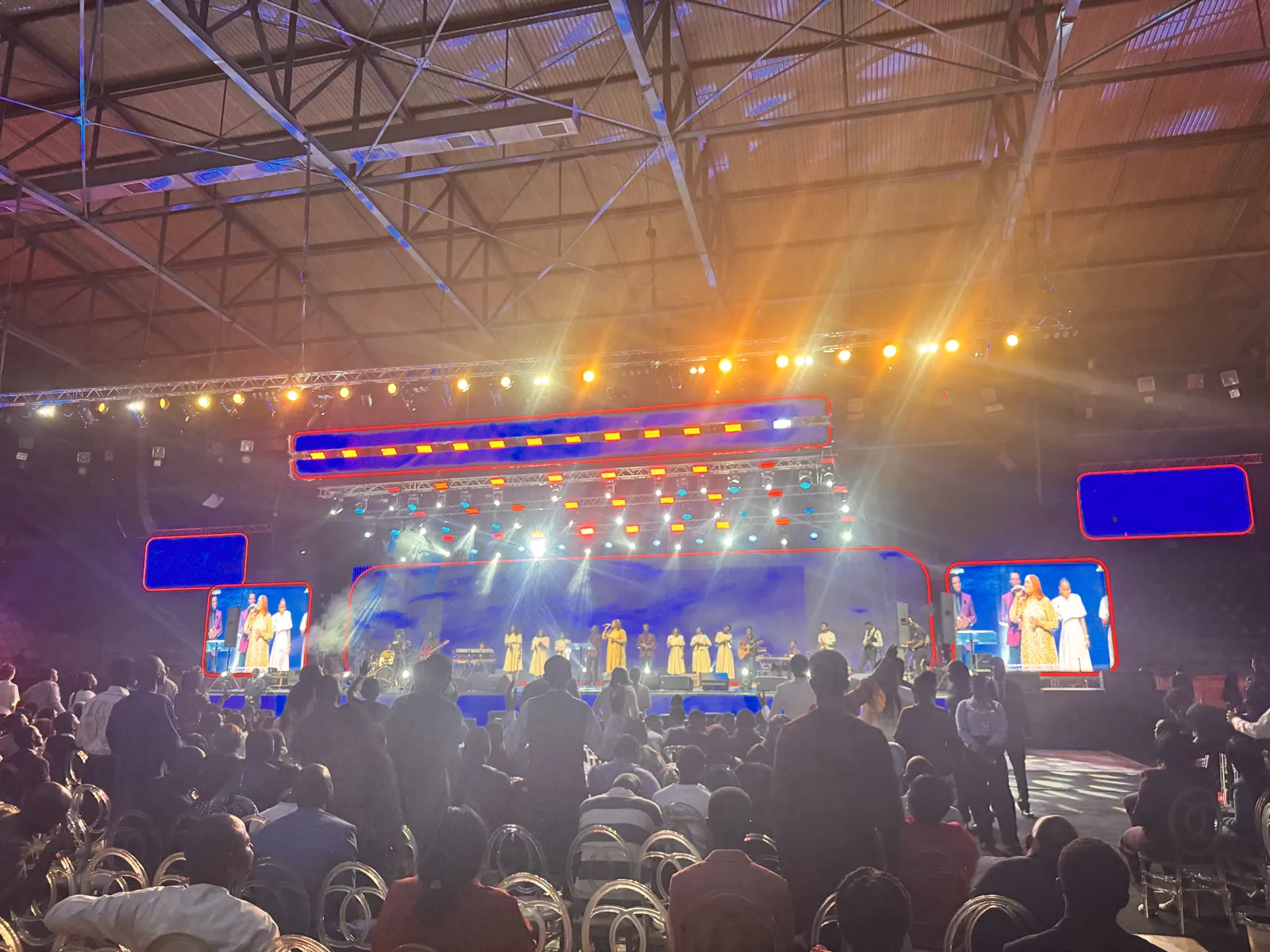

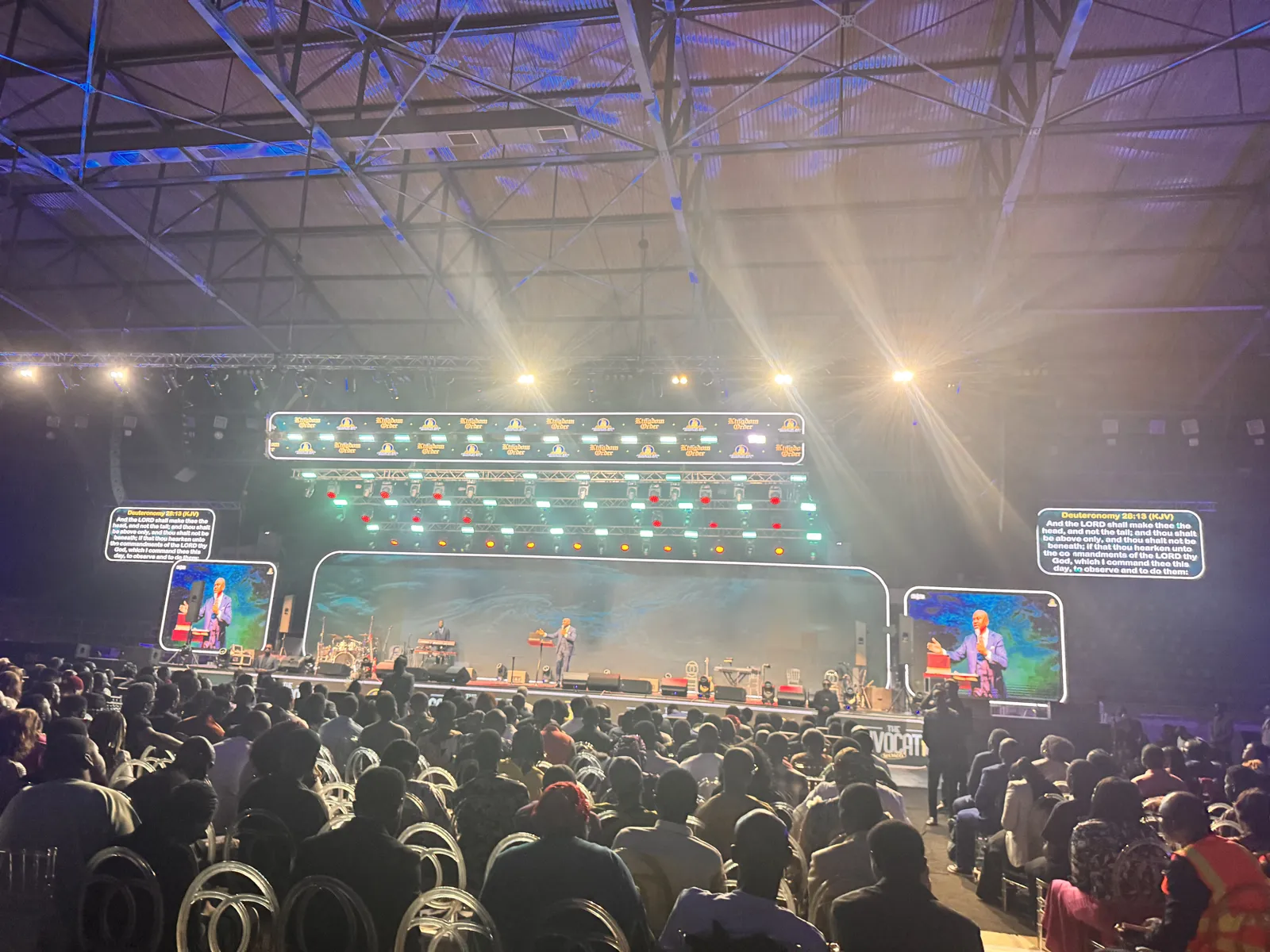

Four days, 172 clips on a timed order, the lights and the screens moving on the same beat.
